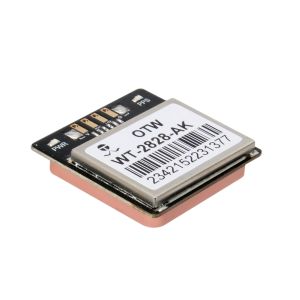

Antenna Integrated Ultra-High Sensitivity GPS Tracking Module for Motorcycles and Vehicles GNSS receiver Module WT-2828-AK

Pin Assignment

Pin No.	Pin name	I/O	Description	Remark
1	VCC	P	Power Supply	Voltage range 3.0V~5.0V
2	RXD	I	UART Serial Data Input
3	TXD	O	UART Serial Data Output
4	GND	G	Ground

Product attributes

Module performance
Model	WT-2828-AK
Receiver type	GPS/QZSS BDS GLONASS
Agreement	NMEA-0183 compliant protocol or custom protocol
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	56
Sensitivity	Tracking -162 dbm Hot start -148dBm Cold start -148dBm
Cold start	Average 29 seconds
Hot start	Average 1 seconds
Accuracy	Horizontal accuracy 2.5m Velocity: 0.1m /s Timepulse signal: RMS 30 ns
Max Height	18000 m
Max Speed	500 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Positioning mode	A-GNSS
Port
Port	UART/TTL/R232/USB
Physical property
Type	1.25mm 6pins connector
Size	28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage	3V~5V
Power Consume	35mA@3.3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
