External GNSS GPS Receiver with UART R232 for Automotive

Ask Lasest Price
Brand Name :	OTW
Model Number :	WT-2828-UN-R232-AV-2M
Price :	$7.05-7.45

Add to Cart

Product Details
Company Profile

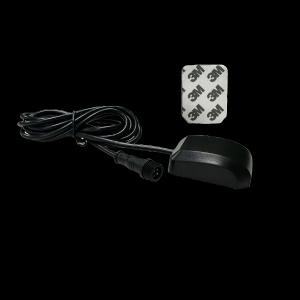

External GNSS GPS Receiver with UART R232 for Automotive

Gps-Mouse GPS Receiver Antenna with UART R232 Air Link Port, Line Length 2m

Module performance
Model	WT-2828-UN-R232-AV-2M
Chip	UBLOX-M8030
Receiver type	GPS/QZSS L1 GLONASS L1 BeiDou B1 Galileo E1
Agreement	NMEA-0183 compliant protocol or custom protocol
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	72
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 26 seconds
Hot start	Average 1 seconds
Accuracy	Horizontal accuracy 2.0m CEP, Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
Max Height	18000 m
Max Speed	500 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -18 Hz
Positioning mode	A-GNSS
Communication type	R232 level
Antenna	Built-in ceramic antenna
Connector

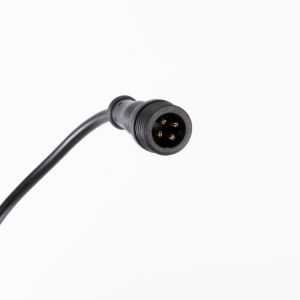

Connector type	Aviation connector
Physical property
Type	4 Pin
Size	38mm49mm16mm (+/- 0.5mm)
Wire length	2m (customizable)
Fixed mode	3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage	3V~5V
Power Consume	35mA@3.3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃

External GNSS GPS Receiver with UART R232 for Automotive
