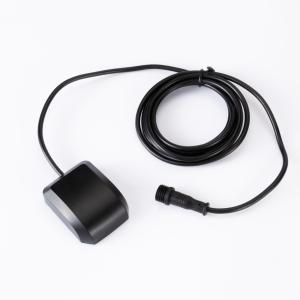

FT546CB GPS Receiver Module with UART R232 Output 3M Cable

Ask Lasest Price
Brand Name :	OTW
Model Number :	WT-2828-AK-R232-AV-3M
Price :	$5.35-5.75

Add to Cart

Product Details
Company Profile

FT546CB GPS Receiver Module with UART R232 Output 3M Cable

GPS Receiver Module Antenna Integration Gps-Mouse UART R232 Modules WT-2828-AK-R232-AV-3M Customized

Module performance
Model	WT-2828-AK-R232-AV-3M
Chip	AT65XX
Receiver type	GPS/QZSS L1 GLONASS L1 BeiDou B1
Agreement	NMEA-0183 compliant protocol or custom protocol
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	56
Sensitivity	Tracking: -162dbm Capture: -148dbm Cold start -148dbm
Cold start	Average 29 seconds
Hot start	Average 1 seconds
Accuracy	Horizontal accuracy 2.5m CEP, Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
Max Height	18000 m
Max Speed	500 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Positioning mode	A-GNSS
Communication type	R232 level
Antenna	Built-in ceramic antenna

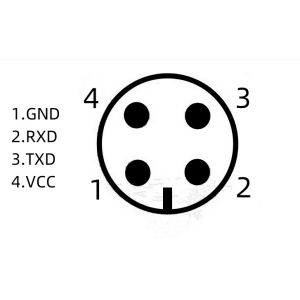

Connector
Connector type	Aviation connector
Physical property
Type	4 Pin
Size	38mm49mm16mm (+/- 0.5mm)
Wire length	3m (customizable)
Fixed mode	3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage	3V~5V
Power Consume	25mA@3.3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃

Logistics & Payment

FAQ

Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it? A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
